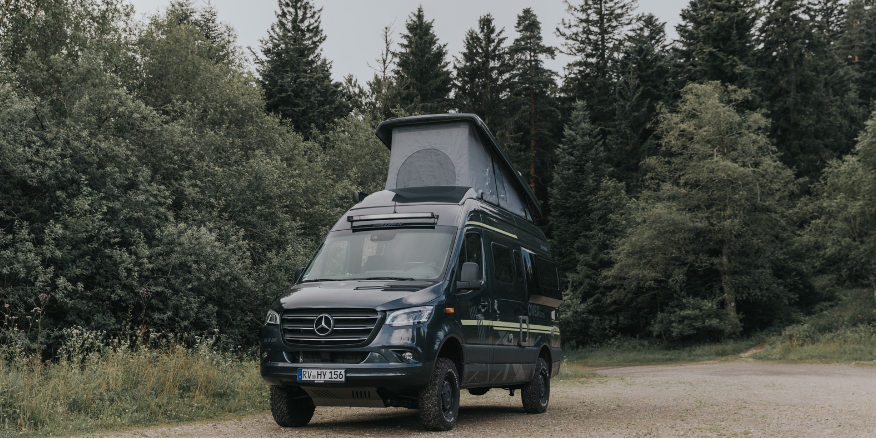

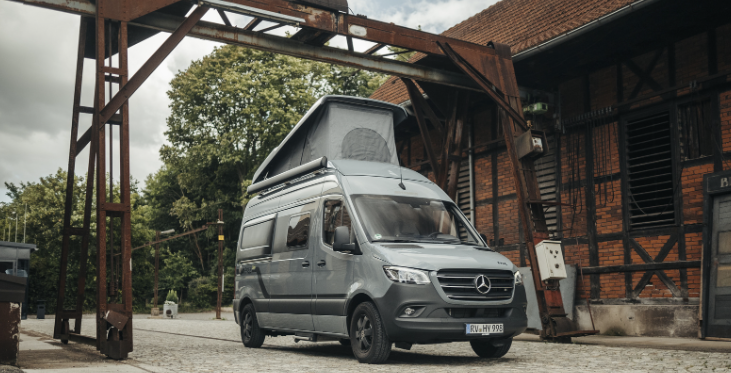

The pop-top roof offers additional comfort on your next trip with your HYMER Camper Van. Read everything you need to know about pop-top roofs here.
Opening and closing the pop-top roof
Here you will find brief instructions on how to open and close your pop-top roof correctly:
Opening the pop-top roof:
1. open the snap lock on both sides. To do this, press the grey tab.
2. Fold out the handle of the quick-release lock and turn it a quarter turn anti-clockwise. The locking system is now released.
3. Press lightly against the pop-top roof. The pop-top roof swings up automatically.
Close the pop-top roof:
1. slowly pull the pop-top roof down using the auxiliary belt until the pop-top roof stops in this position by itself. Ensure that the side pull-in devices bend inwards.
2. If the feeders are not bent inwards: Open the pop-top roof again and close it more slowly.
3. Pull the canvas material inwards using the red tabs on the pull-in devices.
4. Pull down the quick-release lock on both sides and hook into the retaining plate.
5. Fold out the handle on the quick-release lock and turn it half a turn clockwise.
6. Push the two parts of the snap lock together. The grey tab snaps into place.
7. Close the passage to the pop-top roof with a cover.
For ease of use, you have a suitable ladder in your vehicle. We have summarised the most important information on use for you here:

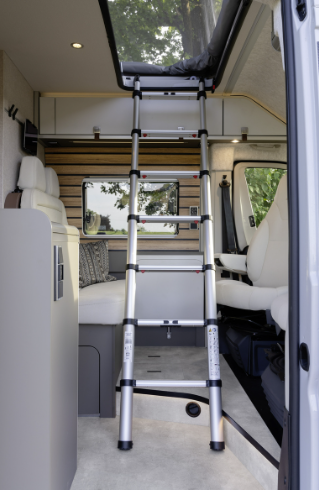

Use of the access ladder
Only climb onto the bed surface in the pop-top roof using the ladder provided. The access ladder is divided and must be put together and locked with side locks before use.
Use the access ladder:
1. put both parts of the access ladder together.
2. Hook the rubber fasteners into the flap on both sides and press down. Ensure that the rubber fasteners are firmly attached to the uprights.
3. Hook the ladder with both brackets into the cramps on the frame of the pop-top roof.
Stow the access ladder:
1. Unhook the stirrups of the access ladder from the lugs.
2. Loosen the rubber fasteners.
3. Dismantle the access ladder.
4. Stow both parts of the access ladder safely
Care and cleaning
Here we have summarised some tips for the care and cleaning of your pop-top roof:
- Only close the pop-top roof when the canvas material is dry. If the pop-top roof needs to be closed with damp canvas material: Open the pop-top roof again as quickly as possible and allow the canvas material to dry completely.
- We recommend impregnating the pop-top roof every 2 years or so. You can obtain suitable products from your dealer or specialist retailer.
- Stains on the canvas material of the pop-top roof can be wiped off with a soft, damp cloth.
You can find a checklist for cleaning your vehicle here: How do I clean my motorhome properly?
Safety and usage instructions for the pop-top roof

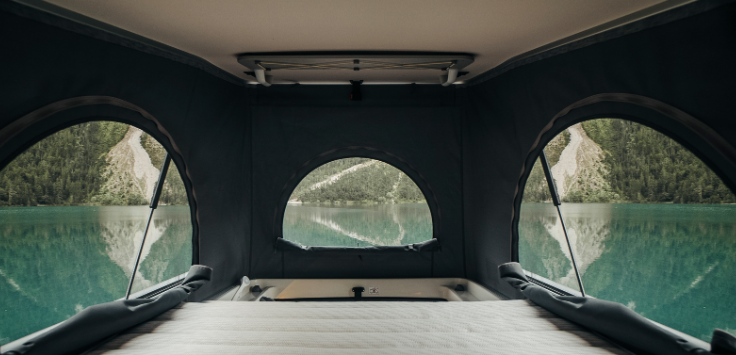

- Velcro fasteners and/or zips allow you to open the vents. The ventilation is equipped with a mesh screen to protect against insects.
- Please do not stay in the pop-top roof during thunderstorms. Lightning strikes can cause life-threatening injuries.
- Please close the pop-top roof properly before starting your journey. Make sure that you do not pinch the canvas material between the pop-top roof and the vehicle roof.
- Attention! Please open a window or the entrance door before closing to prevent air congestion. This could damage canvas material or the mechanics.
